Fig. 3 | Journal of Biological Engineering

Fig. 3

From: Probing the operability regime of an engineered ribocomputing unit in terms of dynamic range maintenance with extracellular changes and time

Fig. 3

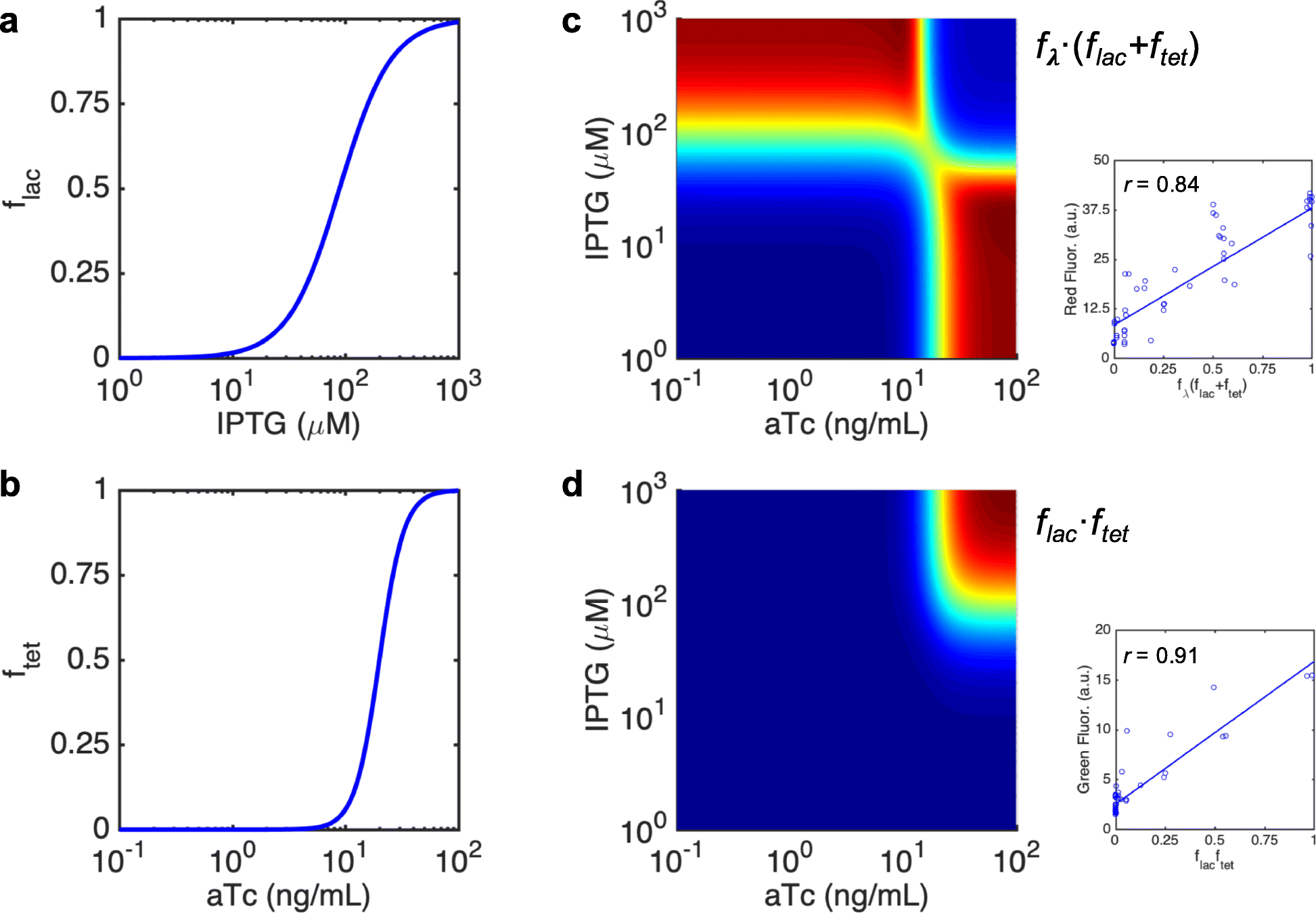

Output response prediction from individual promoter characterizations. a, b Dose-response curves of the lac and tet promoters with respect to IPTG and aTc. c, d Prediction of the surface responses of the engineered gene circuit by considering separation of variables. The subplots show the correlation between the predicted values and mean normalized fluorescence data
